Daslight 4 ArtNet Loopback to HeavyM

[cowen]

Hi,

I have a problem looping my DMX output back into the projection mapping program HeavyM (lighting software for beamer) via ArtNet.

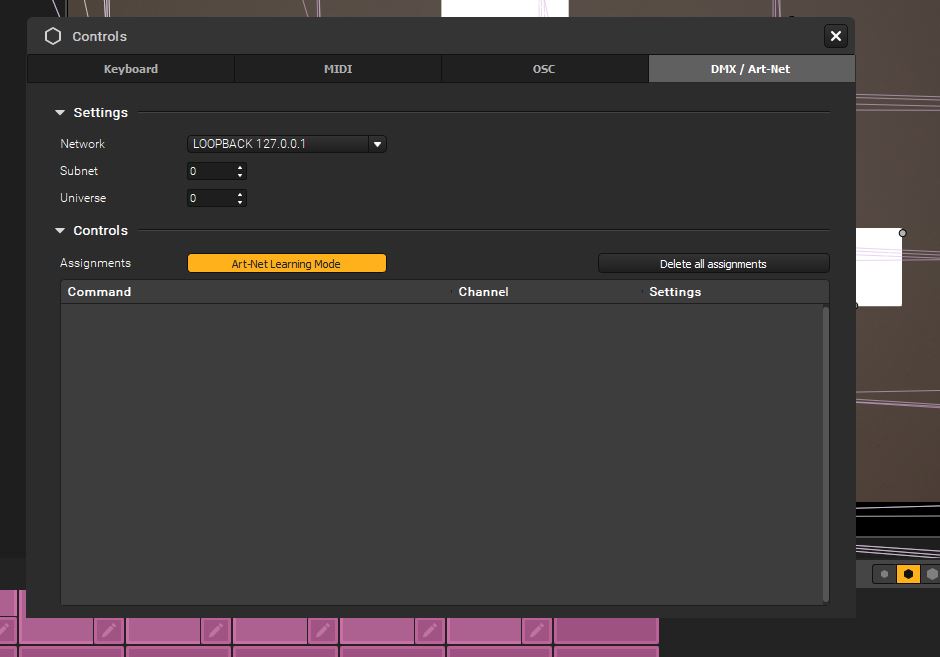

I am using a Sushi-Z1 USB DMX interface with a daslight 4 license. HeavyM is supposed to pick up any signals sent to the IP 127.0.0.1 (second picture).

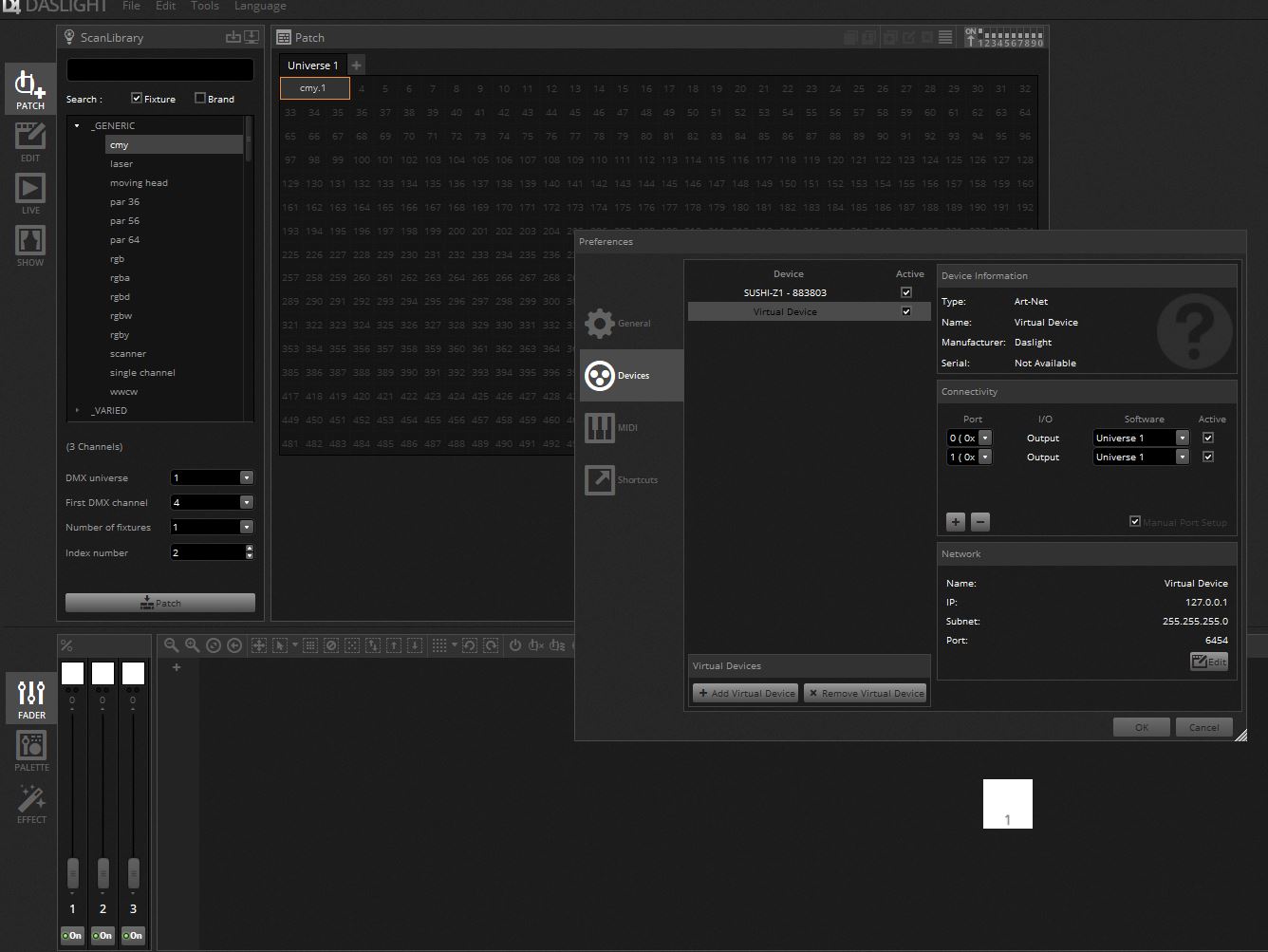

I set up a virtual device (first picture) in daslight to output to the IP 127.0.0.1 on two ports (0x0) and (0x1) for good measure, because I am not entirely sure what i means exactly.
I tried the same thing with DMX Control 3 instead of Daslight and it works fine, so the problem is not on the HeavyM side.

In a tutorial video I saw a broadcast checkbox in the network window of the virtual device, which I don't have. Is this a version issue?

Unfortunately the two programs cannot connect and no user manual could help me any further and I hope someone knows what I am doing wrong.

Edit:
