midi Korg nanoKontrol2 maximum on only 127 instead 255

[djtheglove]

Why is the maximum value for midi in (fader or knob) only 127? For assigning a dimmer channel to midi I need the full 255. And I didn't find any possibility to change that. For me looks like a bug...

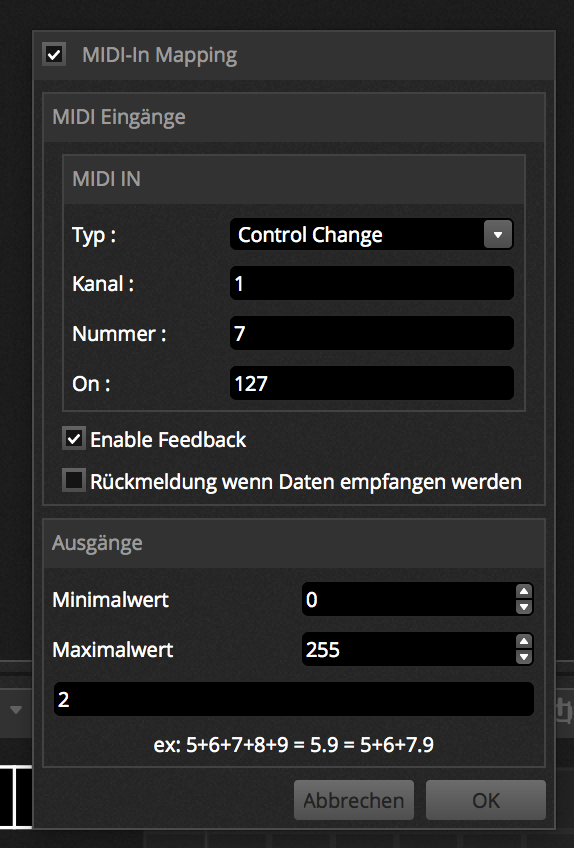

Bildschirmfoto 2016-05-25 um 23.23.50.png (162.26 KiB) Viewed 6488 times

[PolDavril]

Hi djtheglove,

The MIDI values have a range from 0 to 127 for all kind of data (notes, velocities, program changes, all control changes). It's a technical standard used by all musical instruments and peripherals.
Values from 0 to 255 are for the DMX protocol only.

Hope that helps.

[djtheglove]

For scene speed or scene dimmer it's no problem, but ALL channels for each fixture and the master dimmer only go up to dmx value 127, so i get no maximum of 255 directly for a channel dimmer for example.

[PolDavril]

Hi,

For values in the Outputs, set Minimum Value = 0 and Maximum Value = 127 (not 255). These are the default values and it will work fine. All MIDI values are multiplied by 2 giving the correct DMX data.
